उत्पाद का विवरण
Place of Origin: China
ब्रांड नाम: HETECH
प्रमाणन: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC050IG40029-D58V.C
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
पी/एन: |
HC050IG40029-D58V.C |
आकार: |
5"(आईपीएस) |
डिस्प्ले प्रकार: |
(आईपीएस) |
संकल्प: |
800*480 |
रूपरेखा आयाम: |
130.7(डब्ल्यू)*85.8(एच)*4.68(टी)मिमी |
सक्रिय क्षेत्र: |
108(डब्ल्यू)*64.8(एच)मिमी |
चमक: |
400 सीडी / एम 2 |
इंटरफ़ेस: |
20पिनएलवीडीएस |
देखने का दृष्टिकोण: |
80/80/80/80 |
ऑपरेशन अस्थायी।: |
-20 ~ 70 ℃ |
भंडारण अस्थायी।: |
-20 ~ 70 ℃ |
वैषम्य अनुपात: |
1000 |
पहलू अनुपात16:9o: |
16: 9 |
आवेदन: |
फाइबर फ्यूजन स्पाइसर, फिल्म स्कैनर कनवर्टर, पोर्टेबल वेन डिटेक्टर |
पी/एन: |
HC050IG40029-D58V.C |
आकार: |
5"(आईपीएस) |
डिस्प्ले प्रकार: |
(आईपीएस) |
संकल्प: |
800*480 |
रूपरेखा आयाम: |
130.7(डब्ल्यू)*85.8(एच)*4.68(टी)मिमी |
सक्रिय क्षेत्र: |
108(डब्ल्यू)*64.8(एच)मिमी |
चमक: |
400 सीडी / एम 2 |
इंटरफ़ेस: |
20पिनएलवीडीएस |
देखने का दृष्टिकोण: |
80/80/80/80 |
ऑपरेशन अस्थायी।: |
-20 ~ 70 ℃ |
भंडारण अस्थायी।: |
-20 ~ 70 ℃ |
वैषम्य अनुपात: |
1000 |
पहलू अनुपात16:9o: |
16: 9 |
आवेदन: |
फाइबर फ्यूजन स्पाइसर, फिल्म स्कैनर कनवर्टर, पोर्टेबल वेन डिटेक्टर |
| Attribute | Value |
|---|---|
| P/N | HC050IG40029-D58V.C |
| Size | 5"(IPS) |
| Display type | (IPS) |
| Resolution | 800*480 |
| Outline dimension | 130.7(W )*85.8(H)*4.68(T)mm |
| Active area | 108(W)*64.8(H)mm |
| Brightness | 400cd/m2 |
| Interface | 20pinLVDS |
| Viewing angle | 80/80/80/80 |
| Operation Temp. | -20~70℃ |
| Storage Temp. | -20~70℃ |
| Contrast ratio | 1000 |
| Aspect ratio | 16:9 |
| Application | fiber fusion splicer, film scanner converter, portable vein detector |

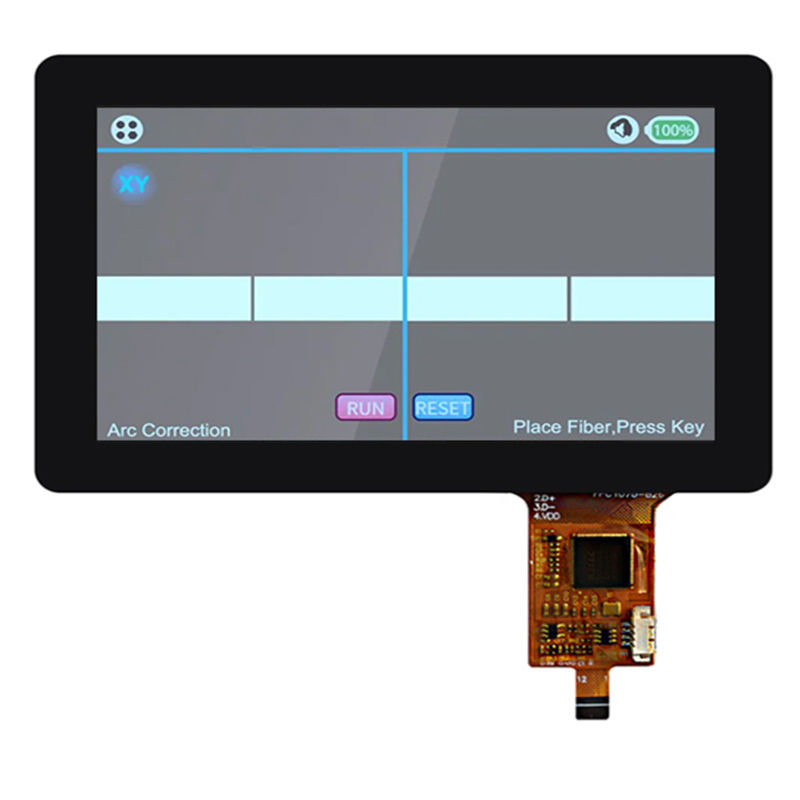

HC050IG40029-D58V.C is a 5-inch TFT IPS display with a capacitive touch panel. Users can experience ultra-clear visuals and vivid imaging in any environment from this display which features 800*480 resolution, 1000:1 contrast ratio, 300-nit brightness. With 80° wide viewing angles from all perspectives, a slim 4.68mm ultra-compact design (130.7*85.8mm), and a robust 20-pin LVDS interface, this display with active area of 108mm*64.8mm delivers precision for fiber fusion splicers, film scanners, and portable vein detectors.
| Parameter | Value |
|---|---|
| P/N | HC050IG40029-D58V.C |
| Size | 5inch |
| Display type | Normally Black,IPS |
| Resolution | 800*480 |
| Outline Dimension(mm) | 130.7(W )*85.8(H)*4.68(T)mm |
| Active Area(mm) | 108(W)*64.8(H)mm |
| Brightness(cd/m²) | 400 |
| Viewing Angle(L/R/T/B) | 80/80/80/80 |
| Interface | 20pinLVDS |
| Operation Temperature | -20~70℃ |
| Storge Temperature | -20~70℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000 |
| Application | fiber fusion splicer, film scanner converter, portable vein detector |
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
|---|---|---|---|---|---|---|
| Voltage for LED backlight | Vf | 16 | 18 | 18.6 | V | If=40mA |
| Current for LED backlight | If | - | 40 | - | mA | - |
| LED Life Time | - | - | 20000 | - | hrs | If=40mA |
Warm reminds: if models listed below can't meet your requirements, customization can be made according to your specific requirements but it is not limited to LCM, RTP, CTP, driver board, etc.
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 5" | HC050IG25031-B04V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 250 | -20~70℃ | -30~80℃ |
